The models listed below are simply cable variants as there is only one ScanCam body (pictured). If your scanner model is not listed in our database, please contact us with information about your POS hardware. To date, we have been able to accommodate most scanners by simply creating a new cable assembly (min. order quantity applies).

ScanCam.Removable.Cable

ScanCam Connection Options

Datalogic 8000 series

ScanCam DS.E4A10-RJ (was ScanCam – LSM)

Leverage’s the 10-pin AUX port and the 4-pin EAS port. Works on all the 8000/8500 series scanner/scales that use these ports. If either the AUX port or EAS port are in use, we have Y-splitters that allow two devices to be connected. (see accessories). Cables are in-stock and ready to ship.

Datalogic 98xx series (new)

ScanCam DS.E10-RJ

Leverage’s the 10-pin EAS port. Should work on all 98xx series scanner/scales that use this port. Cables are in-stock and ready to ship.

N.B The EAS port on these scanners is multi-function and can be configured for automatic tag deactivation when used with a Checkpoint or Sensormatic EAS system. This cable may not work if the port is configured this way.

Metrologic

ScanCam MS.A10-RJ

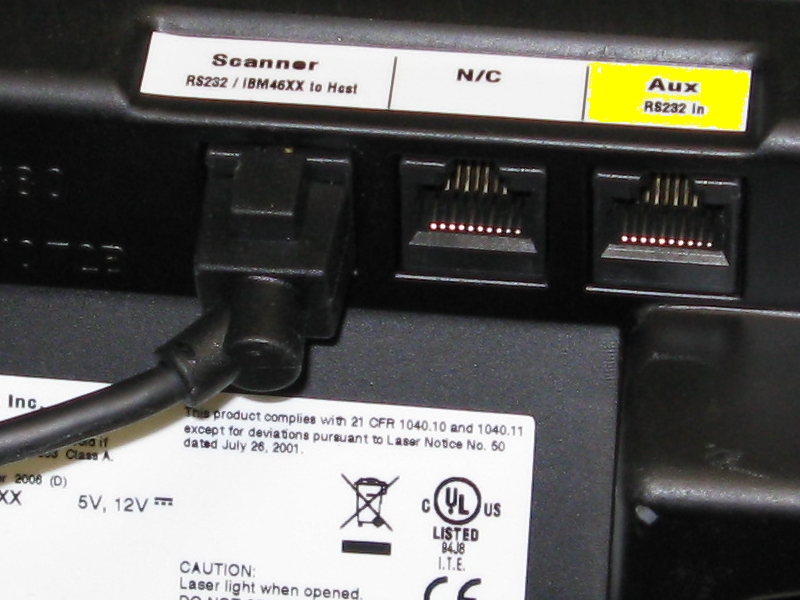

Leverage’s the 10-pin “AUX” socket. Cables available in-stock for these scanners. N.B Port must be reprogrammed using Metrologic software or barcodes. If AUX port in use, request a Y-Splitter (Part # SC-RJ50Y).

NCR

ScanCam NS.E2A8-RJ

Leverage’s either of the two 8-pin “AUX PORT” sockets and the 2-pin EAS port. The EAS port must not be in use. Cables are in-stock and ready to ship.

USB Module (Any handheld or presentation scanner)

SC-USBHID

A complete USB interface kit with ScanCam included. Connects in series with the scanners USB cable and reads the simulated ‘Return’ or ‘Enter’ key sent after a successful read. USB module and ScanCam are powered from the host PC’s USB port. USB in/out are standard USB type A sockets so this version will not work with scanners connected using powered USB plugs.

Accessories
SC-RJ9Y Splitter

For use with all scanners that utilise a 4P4C (RJ9) connector for EAS. Typically used on the PSC (now Datalogic) range from model 381 right through to the 8500 series where the EAS port is in use.

SC-RJ45Y Splitter

All scanners that utilise a 8P8C connector (RJ45). Allows the ScanCam and the host PC to be connected to the same port.

N.B If splitting the main comms cable (scanner connector), approval may be required by the customers IT/POS department or by the scanner vendor.

SC-RJ50Y Splitter

All scanners that utilise a 10P10C connector (RJ50). Allows the ScanCam and the host PC to be connected to the same port N.B If splitting the main comms cable (scanner connector), approval may be required by the customers IT/POS department or by the scanner vendor. Tested on the Symbol P370/470 wireless hand scanners.
